Case Study: Annex Suspension Group — BRZ/FRS/GR86 Coilover Top Hat Bushings
The problem:

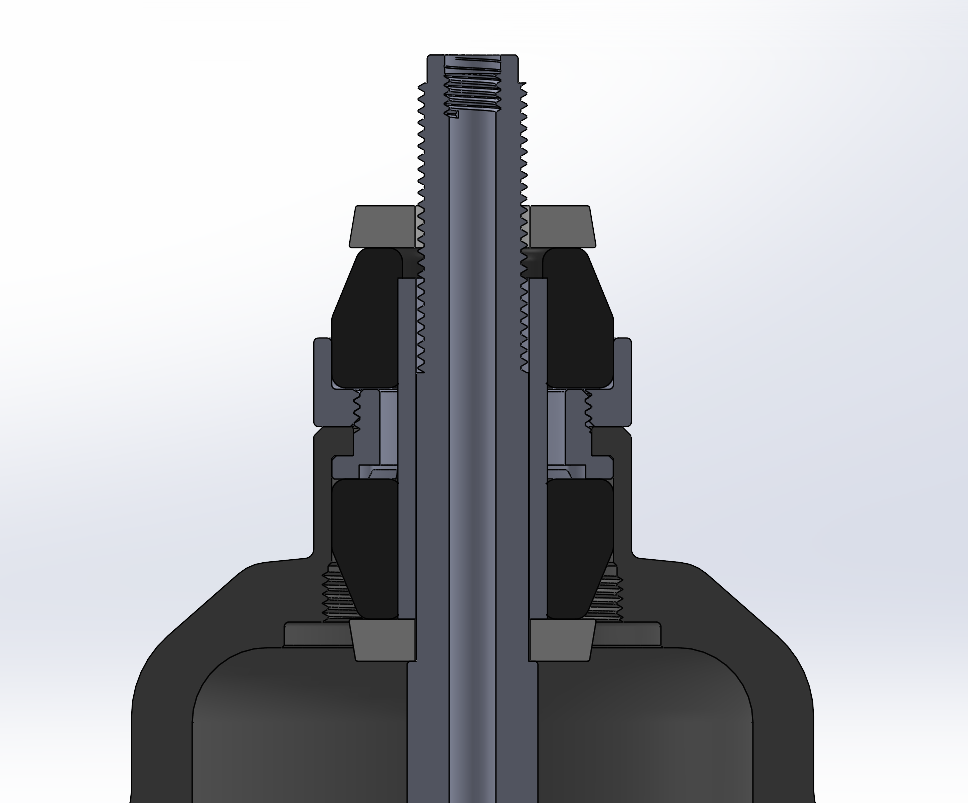

Annex Suspension Group wanted to reduce NVH on their GR86/BRZ coilovers by replacing harsh spherical bearings with a stacked 90A polyurethane bushing setup. However, the cast bushings were plastically deforming in the field. The combined forces of static nitrogen preload (~30 lbs), dynamic damping loads, and violent bump-stop impacts were pushing the standard cast urethane past its elastic limit, causing permanent compression set.
The Manufacturing Bottleneck
Annex was casting from needed a tougher material—like Covestro's TEXIN 392a, a highly creep-resistant, ester-based TPU. However, high-grade TPUs are incredibly difficult to source for small-batch casting, and machining new molds for every geometric iteration was financially unviable.
Perry Parts bypassed traditional tooling entirely. Using our direct-print TPU process, we manufactured prototype bushings out of industrial-grade TEXIN 392a, matched exactly to the existing top hat hardware. No molds, no minimum order quantities, and zero compromises on material science.
The Results

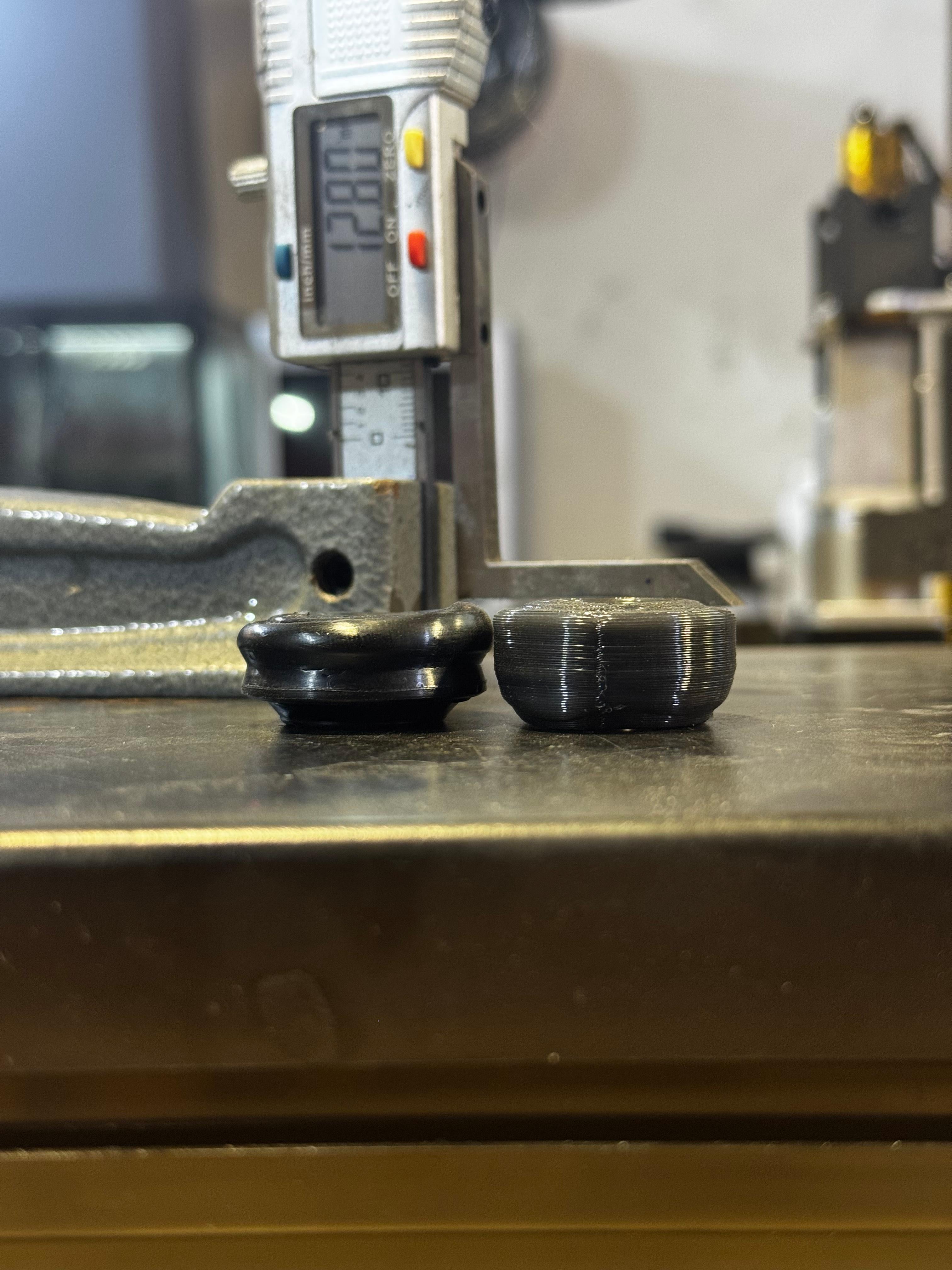

24-Hour Static Load Testing To validate the material, we ran a two-phase compression test comparing the original cast bushings directly against the 3D printed TEXIN 392a parts.
Phase 1 (500 lbs / 24 Hours): The 3D printed parts vastly outperformed the cast urethane, exhibiting 66% less compression set on the critical load-bearing lower bushing.
Cast Urethane 0.56mm
Perry Parts 0.19mm
Phase 2 (2,200 lbs / 24 Hours): Escalating the test to simulate worst-case track impacts, the cast urethane exhibited severe lateral "pillowing." The 3D printed parts maintained their structural geometry significantly better under extreme loads.
The Outcome After reviewing the Phase 2 data, Annex moved directly to production. 100 bushings were printing within 24 hours of payment and shipped in three days. As an added value, Perry Parts engineered a complementary bump stop redesign that routes high-magnitude impact loads directly into the top hat structure, bypassing the bushing stack entirely to guarantee long-term reliability.
Takeaway
Perry Parts offers engineering consulting, rapid prototyping, and scalable production for elastomeric components. If you can mold it, we can print it—faster, cheaper, and higher performing.
